Link RAZOR PDM

⚡️⚡️ Finally released Link Razor PDM! ⚡️⚡️Ciao old fuse boxes and relays 👋 Hello intelligent direct control of all currents with automatic fuse reset. 👍 This is the perfect way to rewire your racing or street vehicle! Fuel pumps, fans and much more can be controlled with PWM, therefore depending on the load. Universal PID control loops and advanced math functions are available for precise control of electrohydraulic differentials (Haldex, ACD, AYC, DCCD etc.).
We have an excellent relationship with Link ECU and actively help to develop new products and improve existing ones. Also in development and _Beta testing of the new Link Razor PDM we have been busy with. Thanks to the team at LinkECU for the great cooperation and the development of an excellent product!

The Link PDM is small and yet enormously powerful. This means that several Link Razor PDMs can be installed in one vehicle. PWM control of the output currents up to 10KHz is possible!

Link Engine Management's highly anticipated Razor PDM puts you in complete control, with fully programmable power distribution and advanced data, the flexibility to expand your set-up, and compatibility with a wide range of ECUs and devices.


What is it?
Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, puting you in complete control of your setup.
The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.

You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.

The Razor PDM can connect with many other ECU brands and CAN devices using a custom CAN stream, and it comes with a preconfigured stream, so other Link products will work with the device straight out of the box.

Can I use the PDM without an ECU?
Good news, you don’t need an ECU to use this Razor PDM, as it can be utilized as a standalone product. However, by connecting it to your Link ECU, you can operate the PDM via CAN devices, such as a CAN keypad, while CAN loggers can also be used to capture a multitude of data.
For those of you without a CAN logger, your Link ECU can be setup to capture the CAN stream data. The PDM Link software can also monitor currents in real-time, so you can see just how much power is being used.


How do I setup the PDM?
The PDM has been built with safety and reliability in mind, which is why it features over-current and short circuit protection, with configurable trip and resettable fuse parameters, which are all set via the dedicated PDM software, PDM Link.

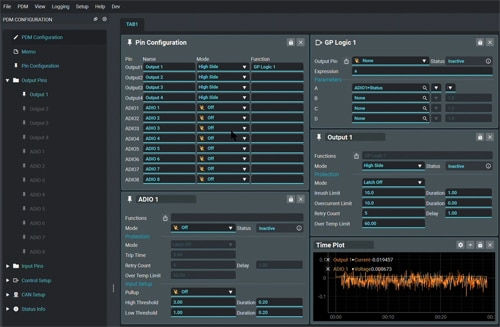

This software will allow you to control and set many parameters within the PDM, including the setting up of intelligent control outputs. This means you can set an output to switch on or off based on certain criteria. These can be programmed using PID’s, Logic or Maths Channels. If you are familiar with tuning in PC Link, then this will be a breeze for you to set up.
A Quick Start Guide is included with the product, and the PDM Link software is now available for download.
